PEM Fuel Cell
The proton exchange membrane fuel cell (PEMFC) uses a water-based, acidic polymer membrane as its electrolyte, with platinum-based electrodes. PEMFC cells operate at relatively low temperatures (below 100 degrees Celsius) and can tailor electrical output to meet dynamic power requirements. Due to the relatively low temperatures and the use of precious metal-based electrodes, these cells must operate on pure hydrogen. PEMFC cells are currently the leading technology for light duty vehicles and materials handling vehicles, and to a lesser extent for stationary and other applications. The PEMFC fuel cell is also sometimes called a polymer electrolyte membrane fuel cell (also PEMFC).
Trust technology
that lasts a lifetime.

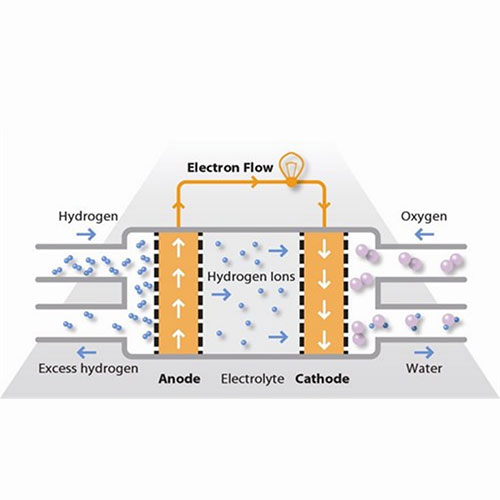

Hydrogen fuel is processed at the anode where electrons are separated from protons on the surface of a platinum-based catalyst. The protons pass through the membrane to the cathode side of the cell while the electrons travel in an external circuit, generating the electrical output of the cell. On the cathode side, another precious metal electrode combines the protons and electrons with oxygen to produce water, which is expelled as the only waste product; oxygen can be provided in a purified form, or extracted at the electrode directly from the air.
We have been manufacturing PEM Fuel Cell since 2014, we supply from Membrane, Catalyst, Bipolar plate, Membrane electrode assembly.
Air cooled PEM fuel cell which is below 5kW, Regular series (12W to 5kW).
Ultra light series (50W to 3kW) and integrated /module series fuel cell (1kW to 2.5kW) for stationary and forklift.

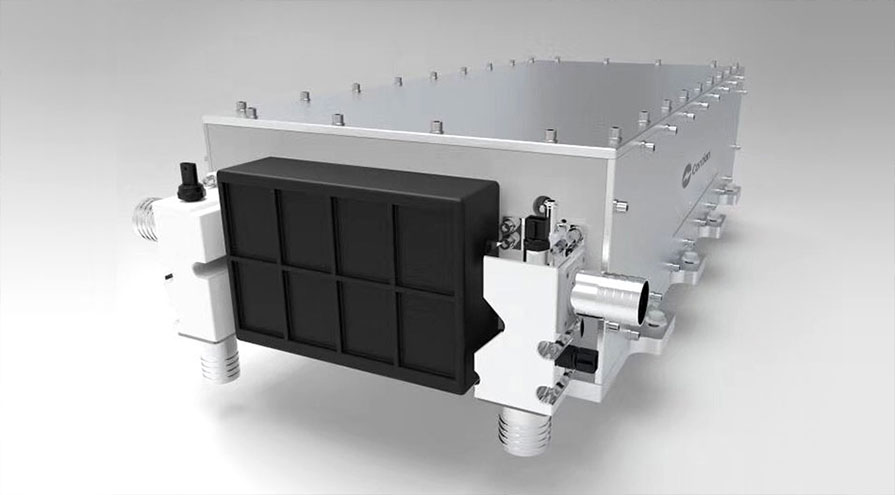

Liquid cooled from 30kW to 150kW for Vehicles, bus even truck.
We are also able to customize fuel cells according to the operating conditions provided by the client.
